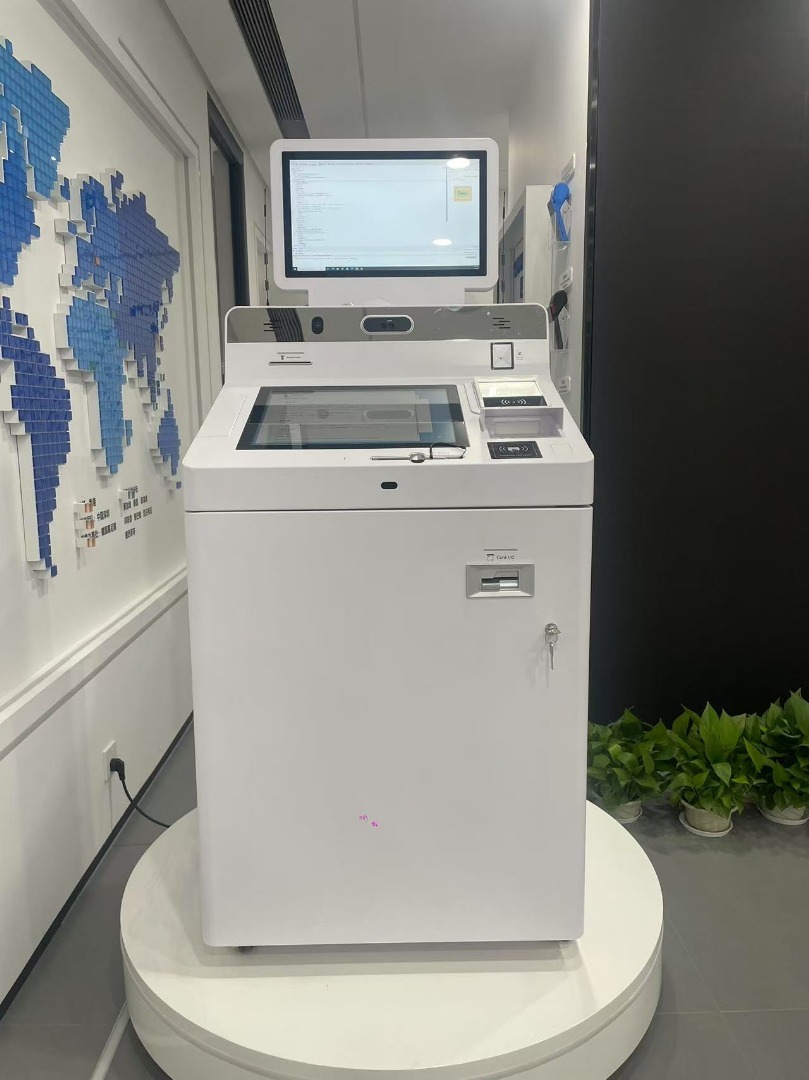

Self-service Terminal All in One Non-cash Business Touch Screen Teller Machine ATM
Financial institutions, service bureaus, retailers, governments and other card issuers can now issue in a highly secure manner personalized embossed cards on demand, either individually, or in low-volume batches with our instant issuance system. This lobby system empowers Banks to enhance their customer experience, or implement new forms of customer service provision.
1, Self service apply for a bank card.
2, Self service to check your account amount.
3, Self service to transfer money to other account.
4, With easy to operate smart touch screen and thermal receipte printer.
5, Easy for installation and maintenance.
6, With UPS power inside to avoid power faliure suddenly.
7, Floor standing can be put at any place.
8, Large screen for advertising.
| Function Description |
| Self-service card replacement |
Support replacing mag-stripe cards into chip cards with the same card number. The old card is stored in a separate compartment and managed safely |
| Enrollment and information collection |
ID card based enrollment with collection of customer data and its verification via internet is supported. The Device is equipped to collect the customer’s photograph, fingerprint data, electronic signature and more. |
| Self-Service interface for basic financial transactions |
Many common workflows for inquiries, payment transfers, top-up payment, electronic signing of contracts or agreements (for as E-banking, mobile banking) and more. |
| Intermediate agent business |
Securities, funds, foreign exchange, financial products marketing; |
| Utility Payments (water, electricity, gas, mobile phone), Payments to urban transport cards, ETC, medical cards top-up and etc. |
| Self-service card issuance |
Self-Service Issuance of cards for banking or other high security cards. |
| Complete range of flat and embossed printing of multi-process cards including magnetic stripe, contact IC and contactless IC cards can be issued within 60 seconds. |
| Supports instant debit and credit card dispensing; |
| Support of re-issuance of highly customized (DIY) cards of replacement or lost cards. |
| Self-service U-key dispensing (optional) |
Support U-key, Password Manager dispensing, scanning of bar-codes, separately lockable card cassettes |
| Module |
Technical Specifications |
| Enclosure |
Sheet metal housing, powder coating surface treatment process |
| Neatly arranged internal wiring, maintenance module with sliding rail; mechanical lock on front/rear door for easy maintenance |
| Independent ventilation system design |
| SIU |
Equipped with sensor and indicator light control unit |
| Industrial Control Host |
CPU:Core i5 |
| SSD:512GB |
| RAM:8GB |
| Windows 10 (64-bit Professional Edition) |
| Display Screen |
21.5-inch LCD display |
| Resolution: 1920*1080 |
| Touch Screen |
19-inch touch display |
| Resolution: 1280×1024 |
| Receipt Printer |
Print paper width: 80mm |
| Cutting method: Full cut / Half cut |
| Supports black mark detection, low/no paper detection, graphic/text/bitmap hybrid printing |
| PIN Pad Keyboard |
16-key metal PIN pad |
| Supports key and sensitive data self-destruction if tampered |
| PCI4.0 Verified |
| Card Issuing Device |
6×100 Flat card hoppers |
| Dye-sublimation Direct-to-Card printer (Dual-sided, with Flipper Module) |
| Human Body Sensor |
Able to detect when a customer is standing in front of the device |
| Passport Reader |
Supports image capture and information recognition of travel documents such as passports and visas in compliance with ICAO 9303 standards |
| Barcode Scanner |
Supports barcode, 1D code, and QR code scanning |
| Switching Power Supply |
Meets overall equipment power consumption requirements |
| Card Reader |
Supports reading and writing of magnetic stripe cards (ISO 7811), contact smart CPU cards (ISO 7816), and contactless smart CPU cards (ISO 14443) |
| Facial Camera |
Supports facial recognition and liveness detection |
| High-resolution Camera |
Supports environmental monitoring |
| Signature Pen |
Electronic signature pen |
| UPS |
Input voltage range (VAC): 165 - 280 |
| Input frequency (Hz): 50 ± 5 |
| Output capacity (VA): 1200 - 1500 |
| Capacity (W): 720 - 900 |
| Ensures completion of the last transaction and data saving during power outages |
| 4G Module |
Standard configuration complies with Philippine national systems and frequency bands |
| Supported network frequency bands in the Philippines: GSM 900/1800 |
| Smart Philippines |
| 4G: Active |
| 4G Bands: B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B28 (700 MHz), B40 (2300 MHz), B41 (2500 MHz) |
| Globe Telecom |
| 4G: Active |
| 4G Bands: B1 (2100 MHz), B3 (1800 MHz), B28 (700 MHz), B40 (2300 MHz), B41 (2500 MHz) |
| DITO |
| 4G: Active |
| 4G Bands: B1 (2100 MHz), B28 (700 MHz), B41 (2500 MHz) |
